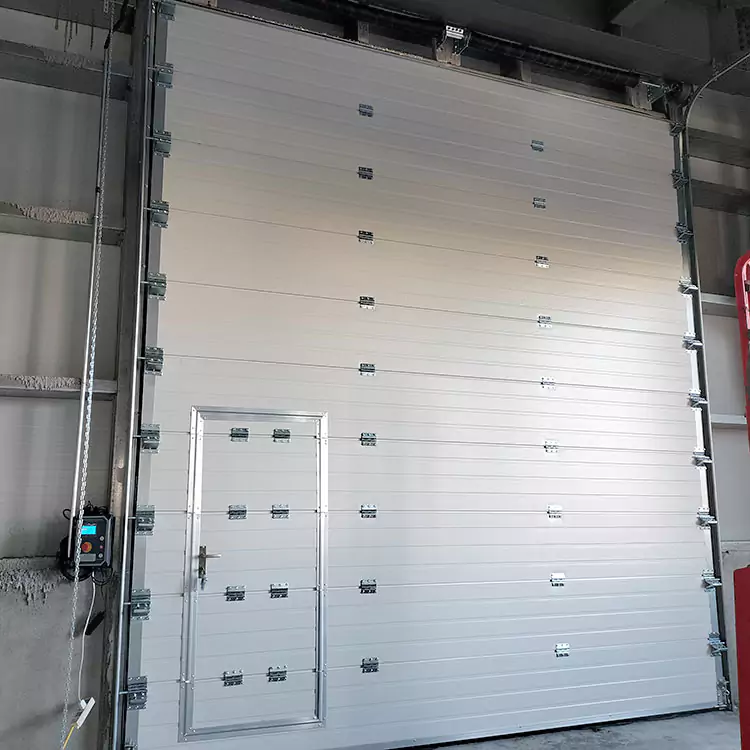

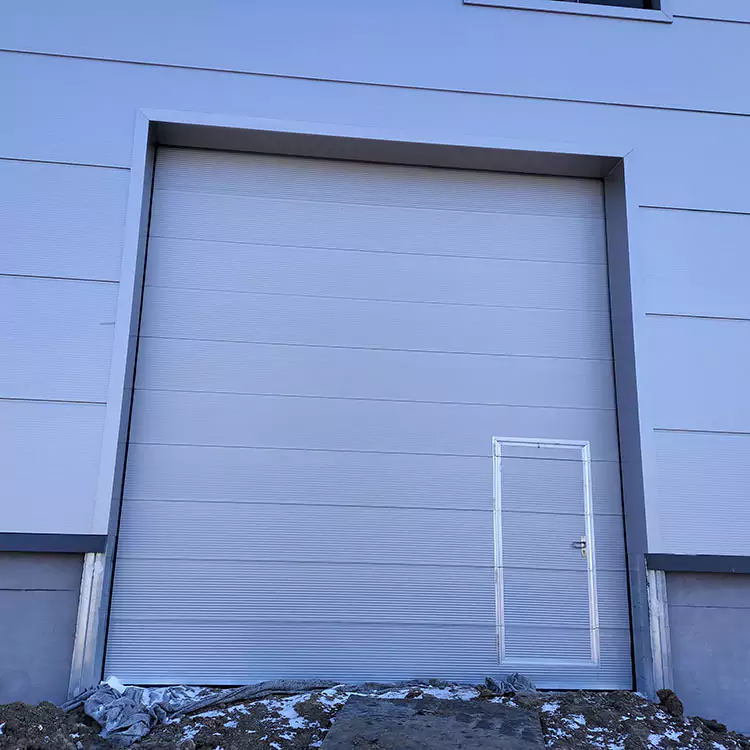

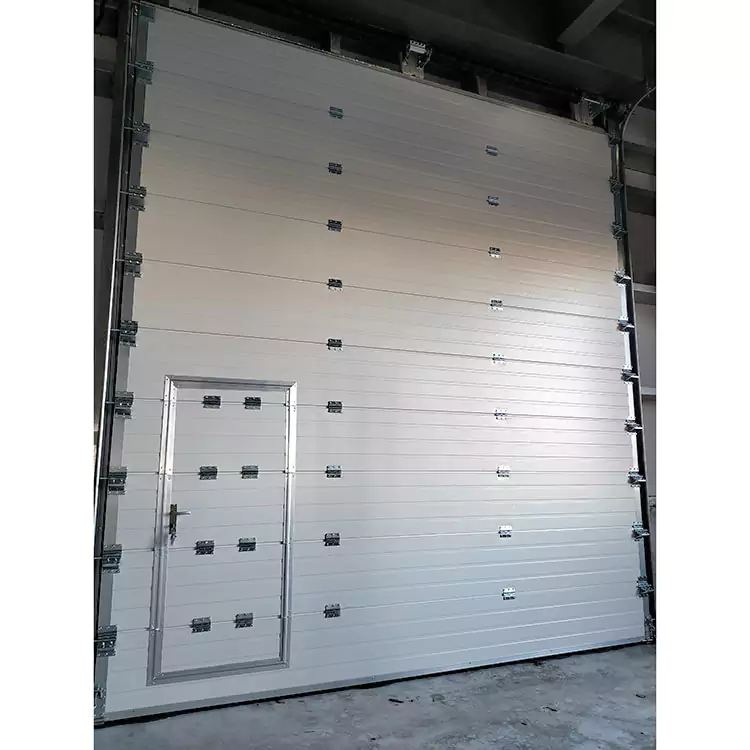

Vertical Insulation Industrial Sectional Door

The vertical insulation industrial sectional door produced by Qingdao Norton Door Technology Co., Ltd. is made of high-quality color steel plates or aluminum plates pressed into shape, with eco-friendly polyurethane foam filled inside. When the door panel reaches a certain width, built-in or external reinforcing ribs can be used to ensure the thickness of the door body and resist sudden wind force up to Grade 10. Depending on the design of different building structures, the vertical insulated industrial sectional door adopts various opening modes to maximize the release of the space of the door opening. High-quality sealing strips are provided at the top, bottom, and both sides of the door panel, and reliable sealing is also provided between door panels, resulting in excellent airtightness. The size and height of the door can be adjusted according to actual needs to accommodate different sizes of goods and transportation tools. Additionally, the door can be maintained at a preset angle when opened, adapting to different work processes and space layouts.

Product Parameter

Product Feature And Application

Features of Qingdao Norton Vertical Insulation Industrial Sectional Doors:

Energy Efficiency: Effectively maintains a balanced indoor temperature and prevents heat loss, contributing to energy savings.

Convenience: Equipped with remote control, control box, and wall switches, these industrial vertical overhead combination doors offer multiple options for operating the door's opening and closing functions.

Diverse Appearances: A wide range of colors, styles, and optional configurations cater to your individual needs and preferences, ensuring a customized look.

Space-Saving: Available in three distinct operation modes, these vertical insulated industrial sectional doors can be tailored to the on-site conditions, maximizing space utilization.

Safety & Reliability: Equipped with various safety devices, the doors ensure reliable and safe operation, minimizing risks.

Quiet Operation: Features smooth and ultra-quiet movement, offering a high cost-performance ratio and low maintenance requirements.

Optional Windows & Access Doors: The door panels can be customized with pedestrian doors and various window styles, providing added functionality.

Versatile Applications: Widely used in pharmaceutical, food, electronics, printing, supermarkets, and other industries requiring high cleanliness standards or regional separation. They are also suitable for workshops, warehouses, logistics centers, parking lots, and other industrial settings with frequent traffic.

Highly Efficient, Flexible, Energy-Saving, Safe, Attractive & Durable: These vertical insulated industrial sectional doors embody the essence of modern industrial architecture, combining efficiency, flexibility, energy efficiency, safety, aesthetics, and durability to become the preferred door type for numerous applications.

Product Details

vertical insulated industrial sectional doors Customizable Garage Door Panels with Unique Styles:

Our garage door panels feature polyurethane foam filling, providing exceptional insulation and sound-deadening properties. Between each panel, premium silver trim strips are incorporated, enhancing the overall aesthetics while maintaining a sleek and modern look. These features not only ensure a quiet and thermally efficient environment but also offer customization options to suit your individual preferences and architectural styles. Whether you're looking for a contemporary, traditional, or any other design, we can tailor the door panels to complement your home's exterior and meet your specific requirements.

Qingdao Norton's vertical insulation industrial sectional doors boasts an extensive range of product accessories, ensuring stable operation, safety, and aesthetic appeal of the door system. These accessories are meticulously designed and engineered to work in harmony with the door panels, ensuring a seamless and reliable performance. From high-quality hinges and rollers for smooth movement to advanced safety sensors and locking mechanisms for enhanced security, every component contributes to the overall excellence of the door.

The hexagonal pipe and wall bracket form a sturdy base for the spring system, ensuring strength, stability, and safety.

Equipped with a spring safety bracket, in the event of a spring failure, the bracket will securely hold the shaft, preventing the door from dropping instantly, ensuring safety and minimizing potential damage.

Bearing bracket, with oil filling hole, fix on the hexagonal pipe tightly.

Bearing bracket for overhead lift door

2.0mm thickness track and track cover, cable break safety bracket is fixed. If cable break, the bracket will cut into track cover to prevent the door from dropping.

Side Adjustable hinge, 2.5mm thickness, single, for small doors.

Side adjustable double hinge, 2.5mm thickness, for big doors

Aluminum cable adjustable bottom bracket, for overhead lift door. The cable can be adjusted easily.

Nylon roller 2" or 3", with plastic on the pole to prevent noise.

Rear beam fixed at the bottom of horizontal track

Manual lock, if power off, the door can be opened manually.

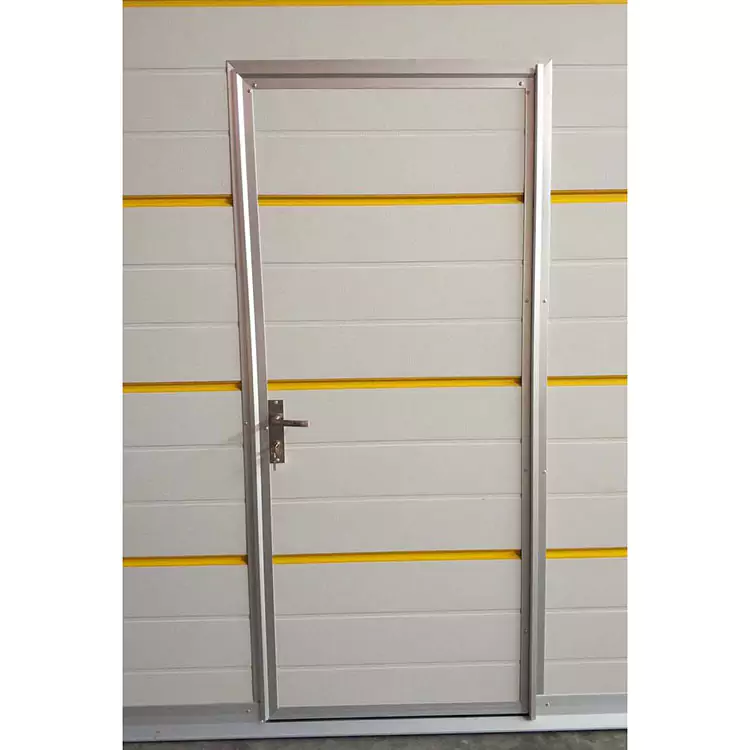

Pedestrian door

Norton Industrial Door Motor:

Incorporating British technology, our variable frequency motor automatically adjusts its speed according to the door's height and weight, ensuring smooth operation. Featuring anti-crushing and anti-collision protection, the motor instantly reverses upon encountering an obstruction and operates with soft start and stop functions for enhanced safety and durability.

Motor

Limit：Double cam limit or Absolute value encoder Voltage：220V or 380V Output rotate speed：19R/Min or 22 R/Min Output Axle diameter Dia.25.4mm Working environment：-20 to 45℃ Control box：LCD status display, with open, close and stop buttons. Press the red emergency siwtch on thecontrol box can cut off the power of control unit immdiately on emergency occasion. Connection wire teminal：Sensor,airbag,pass door safety switch,warning light,Geomagnetic and so on

Packaging for Vertical Insulated Industrial Sectional Doors:

We guarantee that our products are delivered ready for installation, requiring no additional preparation. Simply unpack and install with ease, ensuring a hassle-free experience and seamless integration into your facility. Experience the convenience and peace of mind that comes with our ready-to-use packaging.

Packing Details :

 For full container order, carton box package.  For partial container order, packed by wooden box.
