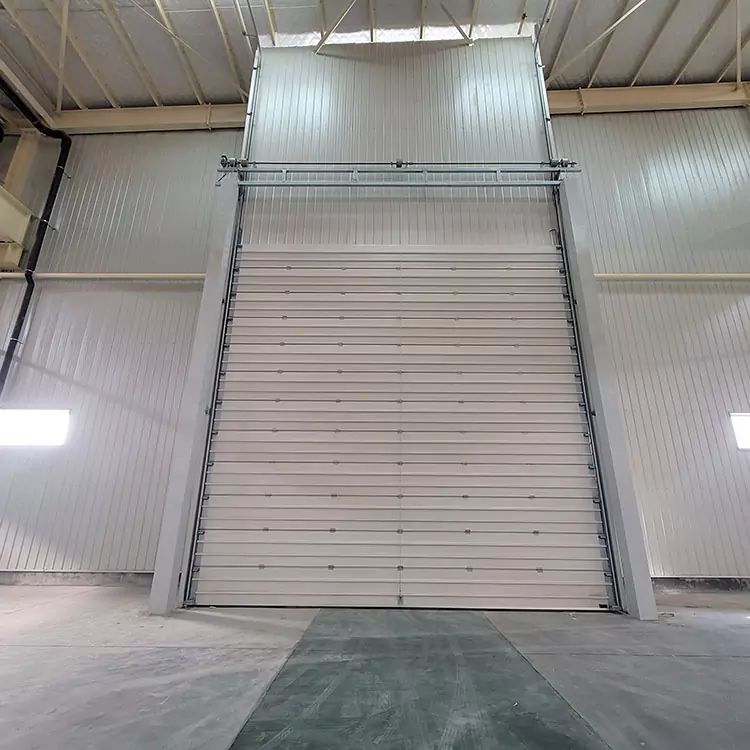

Industrial Vertical Overhead Sectional Door

Qingdao Norton Door Technology Co., Ltd. specializes in manufacturing Industrial Vertical Overhead Sectional Doors featuring high-quality color steel plates or aluminum plates that are precisely pressed and shaped, with an eco-friendly polyurethane foam filling. When the door panel reaches a certain width, either internal or external reinforcing ribs are incorporated to ensure sufficient thickness and withstand sudden winds up to Force 10. Tailored to diverse architectural structures, our Industrial Vertical Overhead Sectional Doors employ various opening methods, maximizing the utilization of doorway space.

These doors boast superior airtightness, achieved through premium sealing strips placed on the top, bottom, and both sides of the door panels, as well as reliable sealing between panels. The size and height of the doors can be customized to accommodate varying sizes of cargo and transportation vehicles. Furthermore, the doors can be programmed to stay at a preset angle during opening, enhancing adaptability to diverse workflow requirements and spatial layouts.

Product Parameter

Product Feature And Application

Features of Qingdao Norton Vertical Overhead Sectional Door:

Energy Efficiency: Effectively maintains a balanced indoor temperature, preventing heat loss.

Convenience: Equipped with remote control, control box, and wall switches, allowing for flexible operation of door opening and closing.

Diverse Appearances: A wide range of colors, styles, and optional configurations cater to your individual preferences and requirements.

Space-Saving: Offers three distinct operational modes, selectable based on site conditions, maximizing space utilization.

Safety & Reliability: Integrated with various safety devices to ensure secure and reliable operation.

Ultra-Quiet Operation: Smooth and silent movement, offering high cost-performance ratio and low maintenance requirements.

Optional Windows & Access Doors: Door panels can be customized with pedestrian doors and various window styles.

The Industrial Vertical Overhead Sectional Door is widely used in pharmaceutical, food, electronics, printing, supermarkets, and other facilities requiring high cleanliness standards and area segregation. It is also suitable for workshops, warehouses, logistics centers, parking lots, and other industrial settings with frequent traffic. Its efficiency, flexibility, energy efficiency, safety, aesthetic appeal, and durability make it the preferred door type for modern industrial buildings.

Product Details

Customizable Garage Door Panels with Unique Styles:

Our garage doors feature panels filled with polyurethane foam, ensuring exceptional thermal insulation and soundproofing. The joints between the panels are sealed with premium silver strips, not only enhancing the overall aesthetics but also further contributing to the door's silent and insulating properties.

The customization options extend beyond functional features; you can choose from a variety of styles, colors, and designs to match your home's exterior or personal preferences. Whether you prefer a modern, sleek look or a more traditional design, we can create a garage door that perfectly complements your property.

With our commitment to quality and attention to detail, every garage door is crafted to last, providing years of reliable service and maintaining its aesthetic appeal.

Qingdao Norton Vertical Overhead Sectional Door product accessories are rich in details, covering a number of key components to ensure the stable operation of the door body, safety and beauty.

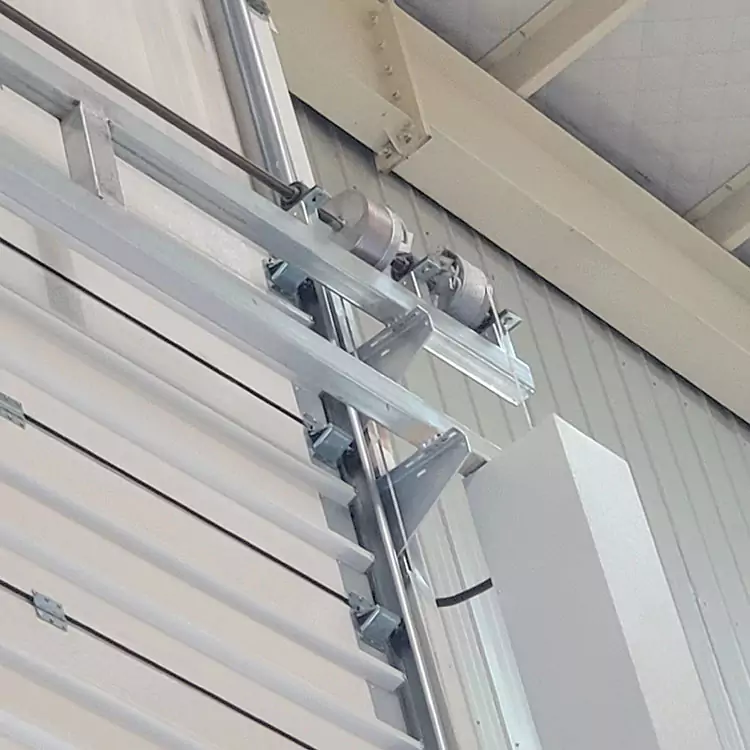

Hexagonal pipe and wall bracket support the spring system. Very strong and solid.

Spring with spring safety bracket. If spring break, the bracket will hold the shaft to prevent door dropping immediately.

Bearing bracket, with oil filling hole, fix on the hexagonal pipe tightly.

Bearing bracket for overhead lift door

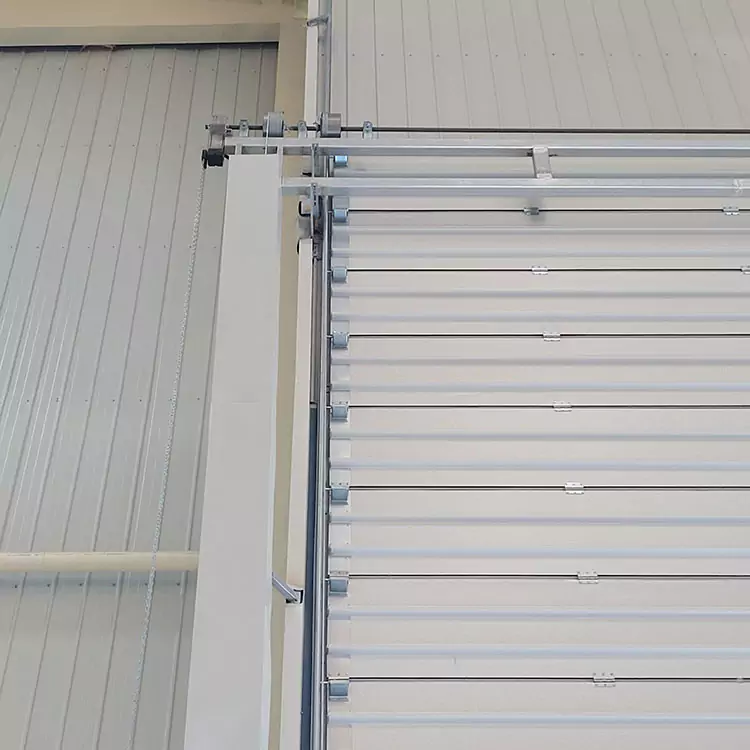

2.0mm thickness track and track cover, cable break safety bracket is fixed. If cable break, the bracket will cut into track cover to prevent the door from dropping.

Side Adjustable hinge, 2.5mm thickness, single, for small doors.

Side adjustable double hinge, 2.5mm thickness, for big doors

Aluminum cable adjustable bottom bracket, for overhead lift door. The cable can be adjusted easily.

Nylon roller 2" or 3", with plastic on the pole to prevent noise.

Rear beam fixed at the bottom of horizontal track

Manual lock, if power off, the door can be opened manually.

Pedestrian door

Introducing UK craftsmanship, our frequency conversion motor adjusts its frequency according to the height and weight of the door, providing anti-crushing and anti-collision protection. It also features obstacle detection for immediate reversal and smooth start-stop operation.

Motor

Limit：Double cam limit or Absolute value encoder Voltage：220V or 380V Output rotate speed：19R/Min or 22 R/Min Output Axle diameter Dia.25.4mm Working environment：-20 to 45℃ Control box：LCD status display, with open, close and stop buttons. Press the red emergency siwtch on thecontrol box can cut off the power of control unit immdiately on emergency occasion. Connection wire teminal：Sensor,airbag,pass door safety switch,warning light,Geomagnetic and so on

Packaging and Delivery of Industrial Vertical Overhead Sectional Doors:

We pride ourselves on ensuring that our Industrial Vertical Overhead Sectional Doors are delivered in a fully pre-assembled and installation-ready state. This commitment means that upon delivery, you can proceed directly with the installation process without any additional preparatory work, making your experience seamless and hassle-free. Our goal is to provide you with the utmost convenience, ensuring that your new doors are up and running smoothly with minimal effort on your part.

Packing Details :

For full container order, carton box package.  For partial container order, packed by wooden box.

Delivery
