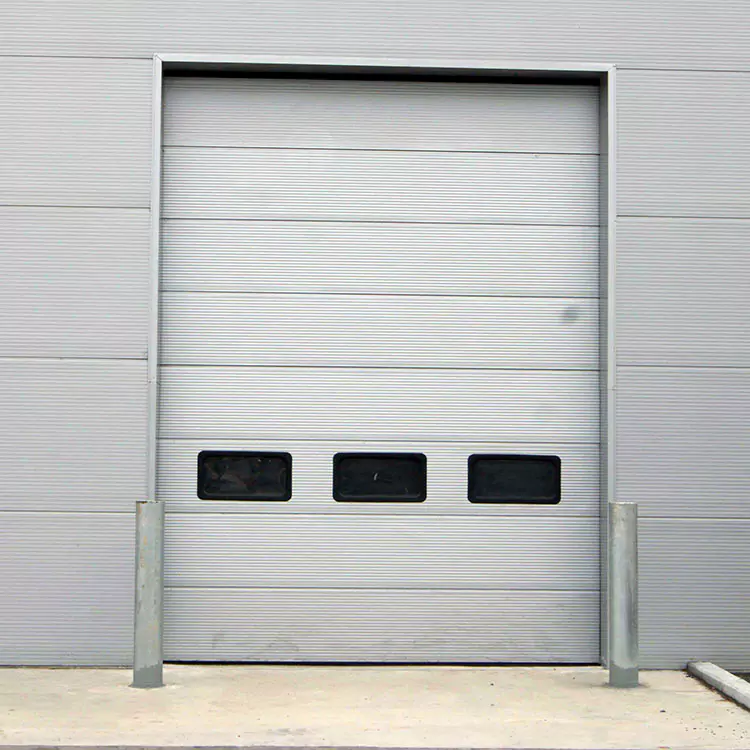

Automatic Sectional Industrial Door

The Automatic Sectional Industrial Door produced by Qingdao Norton Door Technology Co., Ltd. feature door panels crafted from premium color-coated steel plates or aluminum sheets, filled with eco-friendly polyurethane foam. When the door panels reach a certain width, built-in or external reinforcing ribs are employed to ensure the door's thickness and withstand sudden gusts up to Force 10 winds. Tailored to diverse architectural structures, these doors adopt various opening mechanisms, maximizing the utilization of doorway space. The top, bottom, and sides of the door panels are equipped with high-quality sealing strips, ensuring reliable sealing between panels for superior airtightness. The size and height of the doors can be adjusted to accommodate various cargo sizes and transportation vehicles. Furthermore, the doors can be preset to remain at a specific angle when open, catering to diverse workflows and spatial layouts.

Product Parameter

Product Feature And Application

Features of Qingdao Norton Automatic Sectional Industrial Door:

· Energy-saving: Maintains indoor heat balance effectively.

· Convenient: Equipped with remote control, control box, and wall switch for versatile operation.

· Customizable appearance: Diverse colors, styles, and configurations to meet individual needs.

· Space-saving: Three operation modes adaptable to site conditions.

· Safe & reliable: Equipped with various safety devices for secure operation.

· Ultra-quiet: Smooth, silent operation with high cost-effectiveness and low maintenance.

· Optional windows & access doors: Integrated with small doors and various window styles.

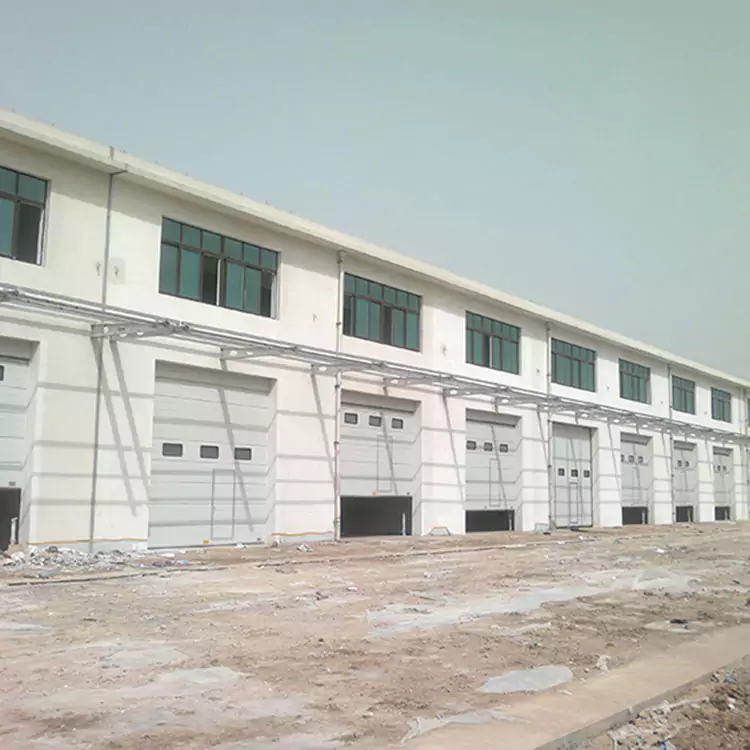

Widely applied in industries requiring high cleanliness like pharmaceuticals, food, electronics, printing, supermarkets, and for frequent access in workshops, warehouses, logistics centers, and parking lots. Its efficiency, flexibility, energy-saving, safety, aesthetics, and durability make it the preferred door type for modern industrial buildings.

Product Details

Customizable Garage Door Panels:

Featuring polyurethane foam-filled panels with premium silver strips between them, our garage doors offer exceptional sound insulation and thermal efficiency.

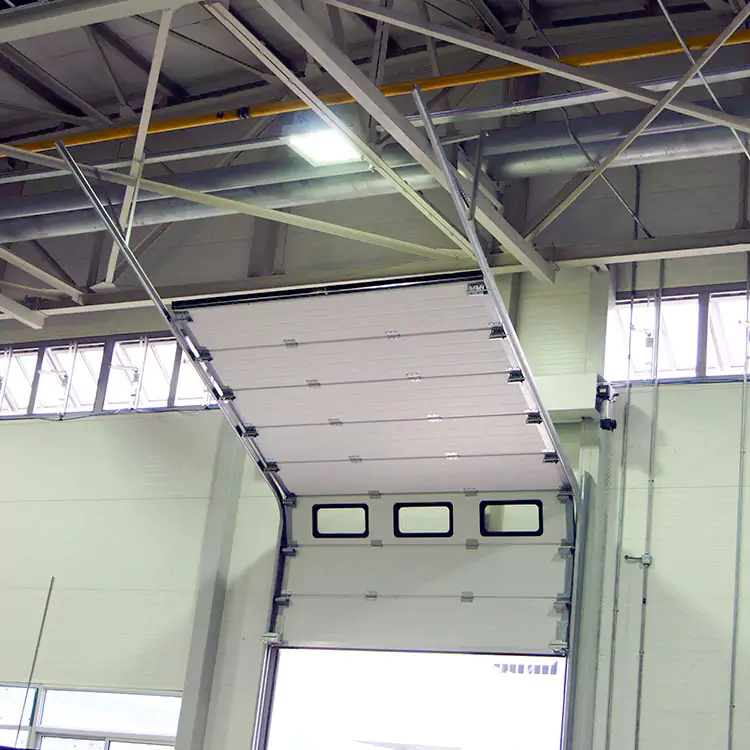

Qingdao Norton's vertical insulated industrial sectional doors boast a wealth of accessory details that contribute to the stable operation, safety, and aesthetics of the door system. These components are carefully designed and selected to ensure the door's longevity, reliability, and overall performance. From high-quality hinges and rollers for smooth movement to robust safety sensors and edge guards for added protection, every detail is taken into account to create a door that exceeds expectations in every aspect.

Hexagonal pipe and wall bracket support the spring system. Very strong and solid.

Spring with spring safety bracket. If spring break, the bracket will hold the shaft to prevent door dropping immediately.

Bearing bracket, with oil filling hole, fix on the hexagonal pipe tightly.

Bearing bracket for overhead lift door

2.0mm thickness track and track cover, cable break safety bracket is fixed. If cable break, the bracket will cut into track cover to prevent the door from dropping.

Side Adjustable hinge, 2.5mm thickness, single, for small doors.

Side adjustable double hinge, 2.5mm thickness, for big doors

Aluminum cable adjustable bottom bracket, for overhead lift door. The cable can be adjusted easily.

Nylon roller 2" or 3", with plastic on the pole to prevent noise.

Rear beam fixed at the bottom of horizontal track

Manual lock, if power off, the door can be opened manually.

Pedestrian door

Norton Industrial Door Motor:

Incorporating British craftsmanship, our frequency conversion motor dynamically adjusts its frequency based on the door's height and weight. This feature ensures anti-crushing and anti-collision protection, with instant reversal upon encountering obstacles and smooth start-stop operation for added safety and comfort.

Motor

Limit：Double cam limit or Absolute value encoder Voltage：220V or 380V Output rotate speed：19R/Min or 22 R/Min Output Axle diameter Dia.25.4mm Working environment：-20 to 45℃ Control box：LCD status display, with open, close and stop buttons. Press the red emergency siwtch on thecontrol box can cut off the power of control unit immdiately on emergency occasion. Connection wire teminal：Sensor,airbag,pass door safety switch,warning light,Geomagnetic and so on

Automatic Sectional Industrial Door Packaging:

We commit to delivering our products in a fully pre-assembled and ready-to-install state, eliminating the need for additional on-site preparations. This ensures a hassle-free installation process, allowing you to enjoy the convenience and peace of mind that comes with seamless integration into your operations.

Packing Details :

For full container order, carton box package.  For partial container order, packed by wooden box.

Delivery
