New Design Stacking Garage Door

Panel produce 40mm and 50mm thickness PU foam insulated door panels. For long panel of double garage door, you can choose panel with inner or outside reinforcement bar. The panels with reinforcement will not curve when lift up. There are are line, micrograin, square, flat styles optional. And wood grain, orange peel, big orange peel surface finish are optional。

Product Parameter

Product Feature And Application

Norton's innovative hanging garage door system features a unique hanging structure comprising a central vision window, bottom panel, and top panel, with the option to customize the entire door as a full-vision panel based on individual requirements.
The aluminum frame and door panel materials are diverse, including standard PC boards, scratch-resistant PC boards, polycarbonate sheets, transparent tempered glass, and more, catering to diverse aesthetic and functional preferences.
Equipped with safety features such as airbags, infrared sensors, and anti-drop devices, the newly designed Norton hanging garage door ensures user safety during operation. The door's obstacle detection and rebound function prevent harm to people and animals.
The aluminum frame boasts a durable fluorocarbon coating that can be customized to match the building's color, seamlessly blending with its surroundings. The door's robust construction, subjected to rigorous quality control and testing, guarantees long-term stability and reliability.
Powered by advanced control systems featuring specialized motors and frequency converters, the door operates swiftly and smoothly. Remote control functionality allows for effortless and convenient operation.
Ideal for high-end residences, villas, and commercial buildings, Norton's New Design Stacking Garage Doorstands out in the market with its unique design and exceptional performance, earning it a strong reputation and high competitiveness.

Product Details

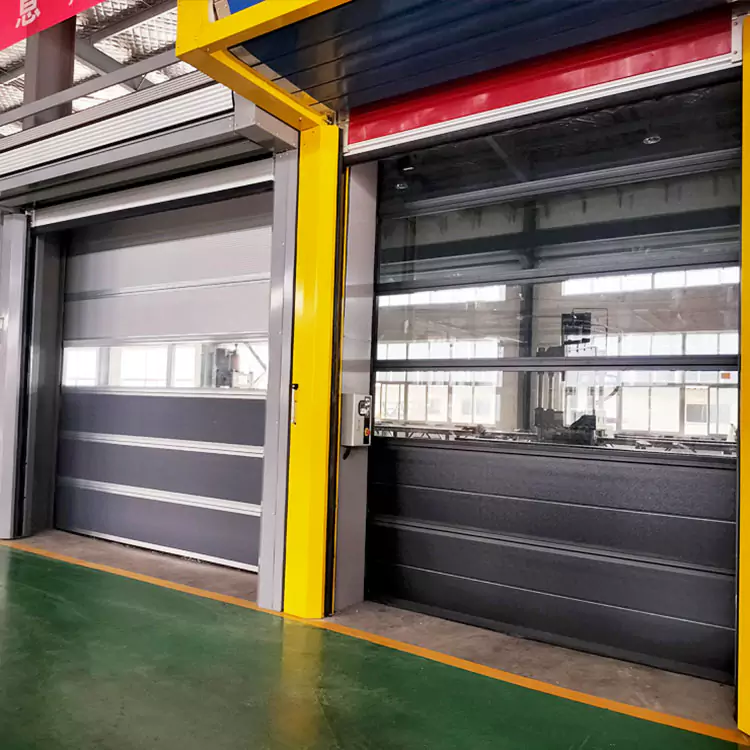

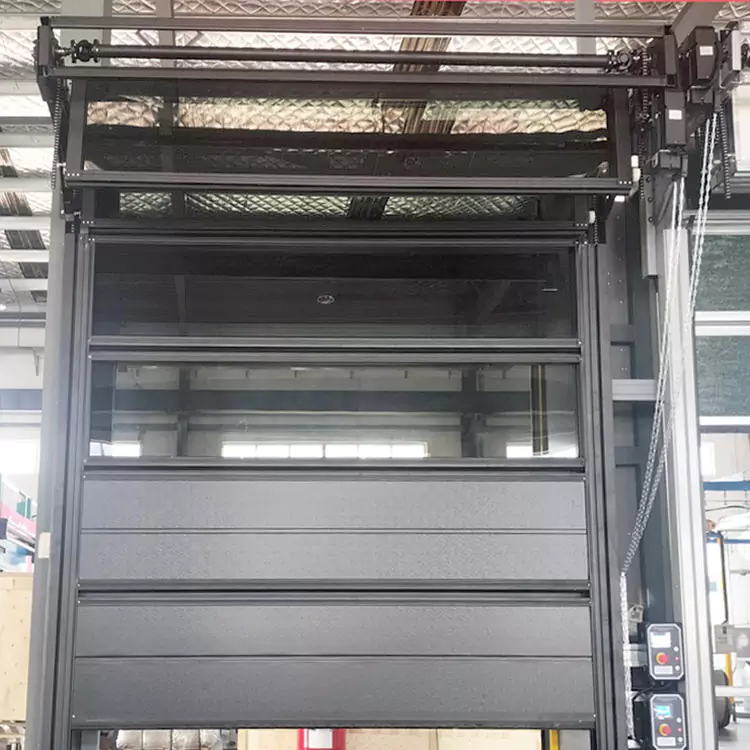

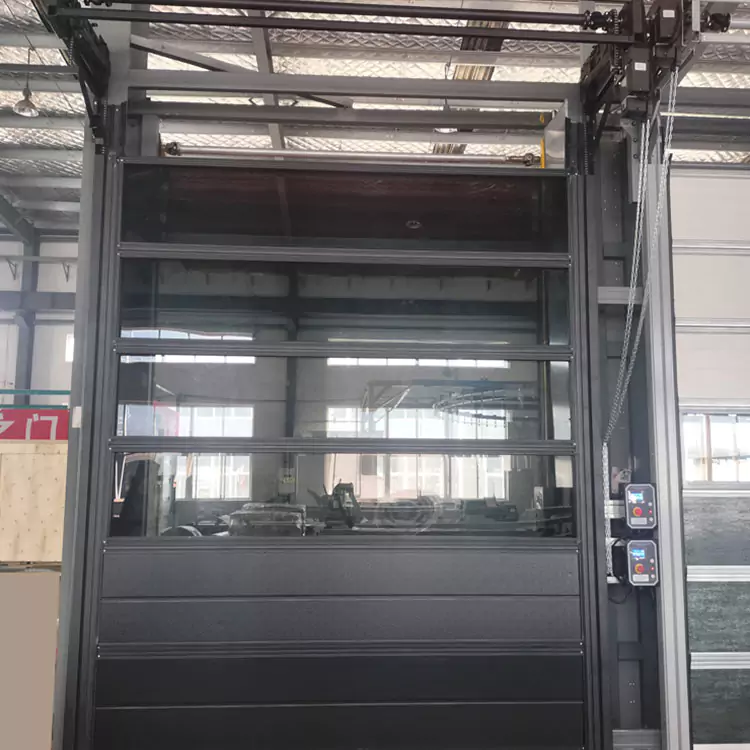

Qingdao Norton's New Design Stacking Garage Door Showcase:

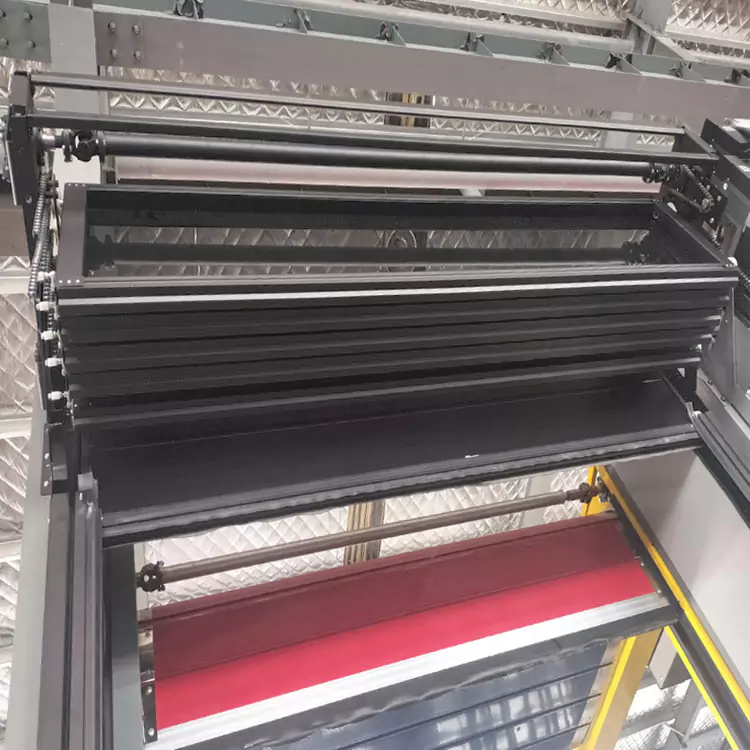

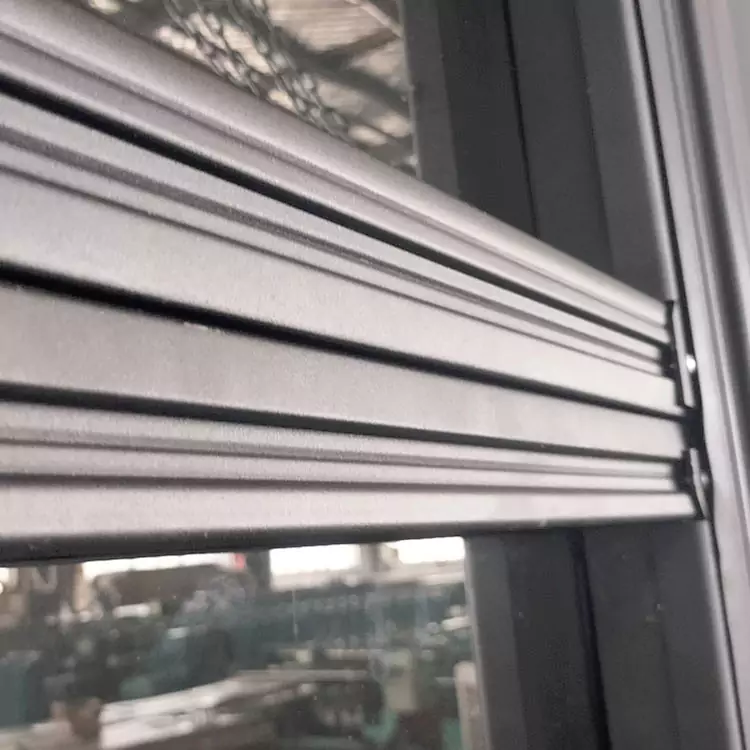

The Norton hanging door incorporates steel reinforced wind-resistant ribs between door panels, enhancing durability. Each panel is conveyed by chains, which elevate them to the top in an orderly stacked arrangement. The panel height can range from 400mm to 500mm, with taller panels resulting in a higher overhead cover box.

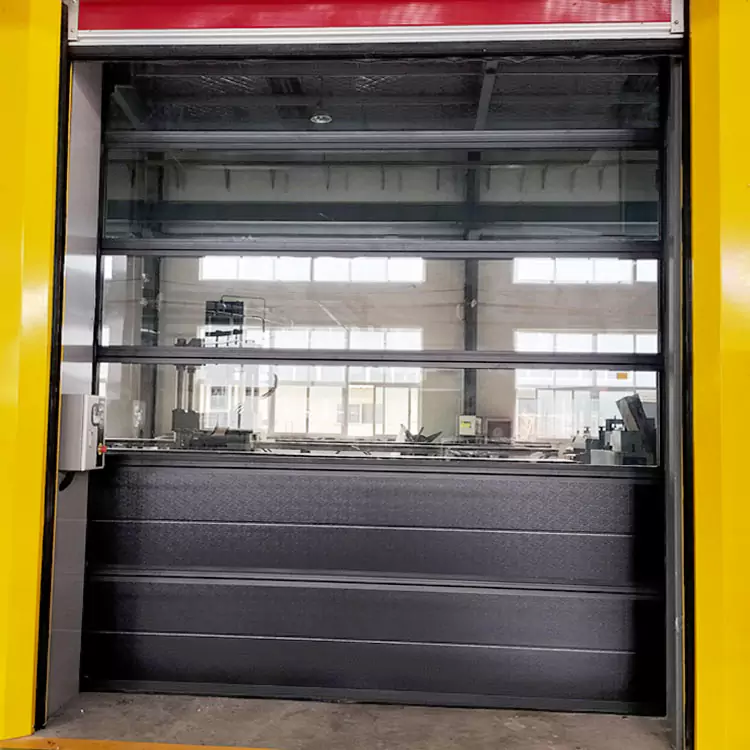

Versatility is key: the panels can be crafted in full-vision style for maximum visibility or as foam-filled for insulation and noise reduction. The innovative design ensures both functionality and aesthetics, tailored to meet diverse garage door needs.

Norton Hanging Stacking Door Motor:
Featuring British craftsmanship, the frequency conversion motor automatically adjusts its frequency according to the door's height and weight, ensuring anti-crushing and anti-collision capabilities. With obstacle detection and rebound mechanism, it starts and stops smoothly. Capable of operating at low speeds with high power, the motor eliminates the need for a reducer when driving heavy loads, boasting a compact size, lightweight construction, and immense power output, among its many advantages.

Motor

Limit：Double cam limit or Absolute value encoder
Voltage：220V or 380V
Output rotate speed：19R/Min or 22 R/Min
Output Axle diameter Dia.25.4mm
Working environment：-20 to 45℃
Control box：LCD status display, with open, close and stop buttons.
Press the red emergency siwtch on thecontrol box can cut off the power of control unit immdiately on emergency occasion.
Connection wire teminal: Sensor, airbag, pass door safety switch,warning light,Geomagnetic and so on.

Production of Newly Designed Hanging Garage Doors by Qingdao Norton Door Technology Co., Ltd.

At Qingdao Norton Door Technology Co., Ltd., we prioritize meeting our customers' needs in every aspect of hanging garage door production. We offer a comprehensive one-stop service, encompassing design, manufacturing, installation, and maintenance, to ensure our clients enjoy a hassle-free experience throughout the entire process.

Equipped with state-of-the-art production facilities and a skilled technical team, we guarantee efficient and precise completion of hanging garage door production tasks. Our focus on customer satisfaction drives us to deliver products that exceed expectations, ensuring our clients' peace of mind and complete satisfaction with their new hanging garage doors.

Packing Details : For full container order, carton box package.  For partial container order, packed by plywood box.  Delivery

Packaging and Delivery of the Newly Designed Hanging Garage Doors

Introducing our latest innovation in hanging garage doors, designed with your convenience in mind. We are proud to announce that our new design comes pre-assembled and ready for installation upon delivery. This means you can enjoy the benefits of our state-of-the-art garage doors without any additional hassle or delay.

Packing Details:

Full Container Orders: For customers placing orders that require a full container shipment, we utilize high-quality carton boxes that offer exceptional protection during transport. These boxes are specifically tailored to fit our new design, ensuring your garage doors arrive in pristine condition.

Partial Container Orders: For smaller orders that do not fill an entire container, we employ wooden boxes for maximum durability and security. These boxes provide an added layer of protection, ensuring your garage doors are safe and secure during transit, regardless of the shipping conditions.

We prioritize swift and efficient delivery for all our customers. By partnering with established logistics companies, we ensure that your newly designed hanging garage doors arrive at your doorstep on time and in perfect condition. Our team will keep you informed every step of the way, from order processing to final delivery, so you can track the progress of your shipment with ease. Experience the convenience and peace of mind that comes with our hassle-free delivery service.
