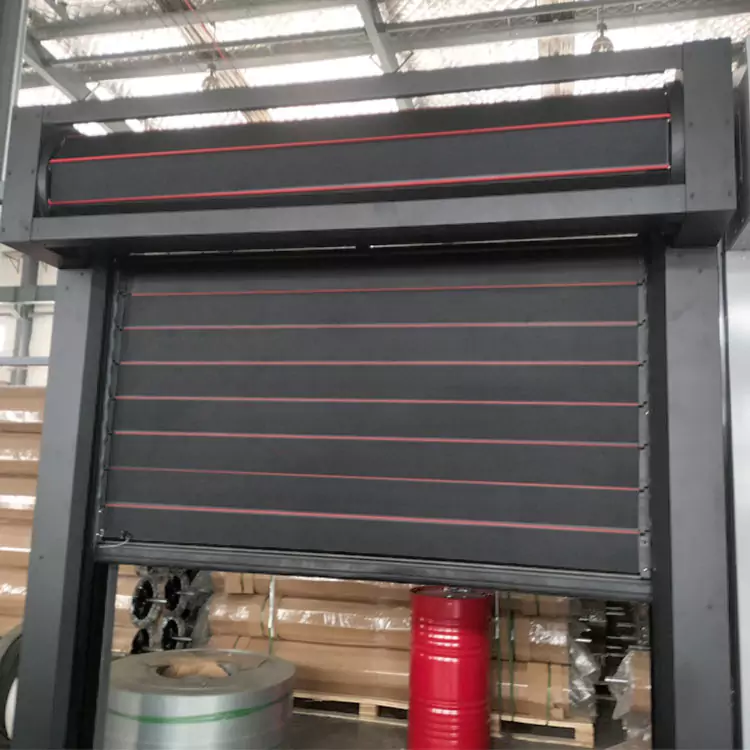

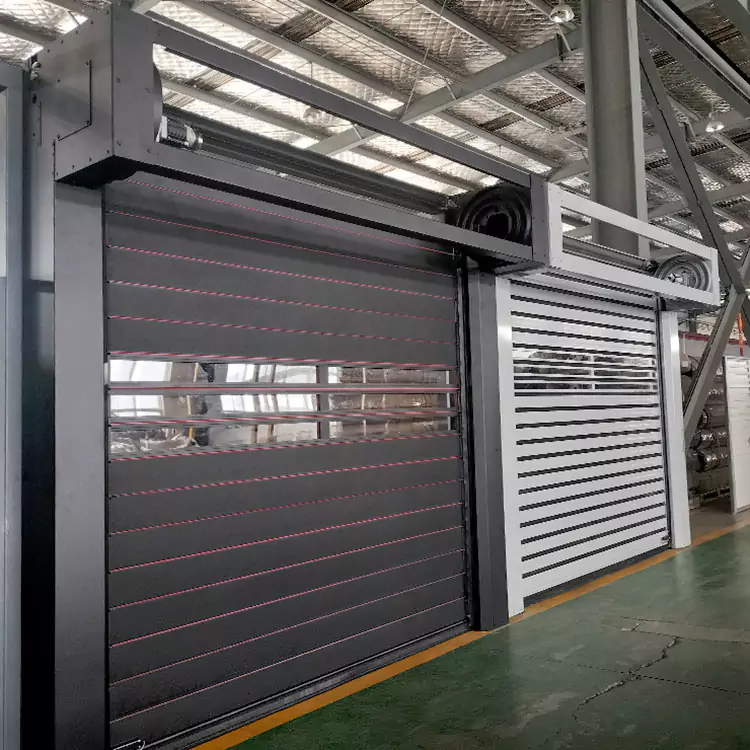

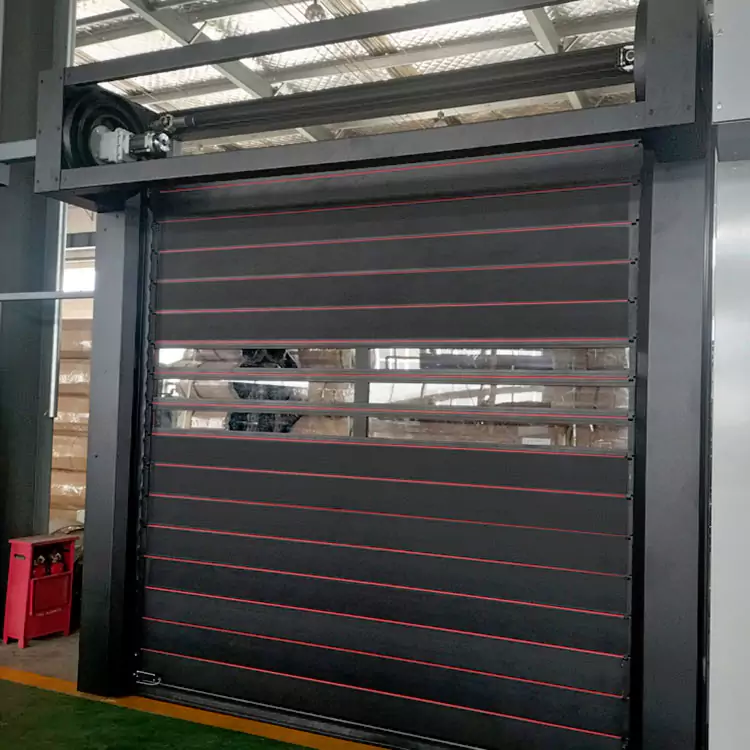

Aluminum Spiral Rapid Door

Qingdao Norton Door Technology Co., Ltd. proudly presents its Aluminum Spiral Rapid Door, an industrial door solution that integrates high efficiency, high safety, and excellent design. This product adopts advanced aluminum alloy material and turbine drive technology, tailored for industrial and commercial environments that pursue efficiency, safety, and aesthetics. The Aluminum Spiral Rapid Door boasts excellent door panel performance, fast operation speed, advanced control system, and minimal installation space occupation.

Product Parameter

Product Feature And Application

Features of Qingdao Norton Aluminum Spiral Rapid Door:

The spiral circular non-contact track is utilized, ensuring that the panels remain unconnected to each other as the curtain rolls up. This design prevents wear and deformation of the panel material, minimizes friction, and enables the door to operate swiftly and silently. The door moves smoothly, rapidly, and stably, making it ideally suited for high-frequency operations.

Product Details

As an industrial door solution with high efficiency, high safety and excellent design, Qingdao Norton aluminum spiral speed door has the following details:

Advanced Aluminum Alloy Material: The door body is made of high-quality aluminum alloy material, which has excellent corrosion resistance and durability, able to withstand various harsh industrial environments.

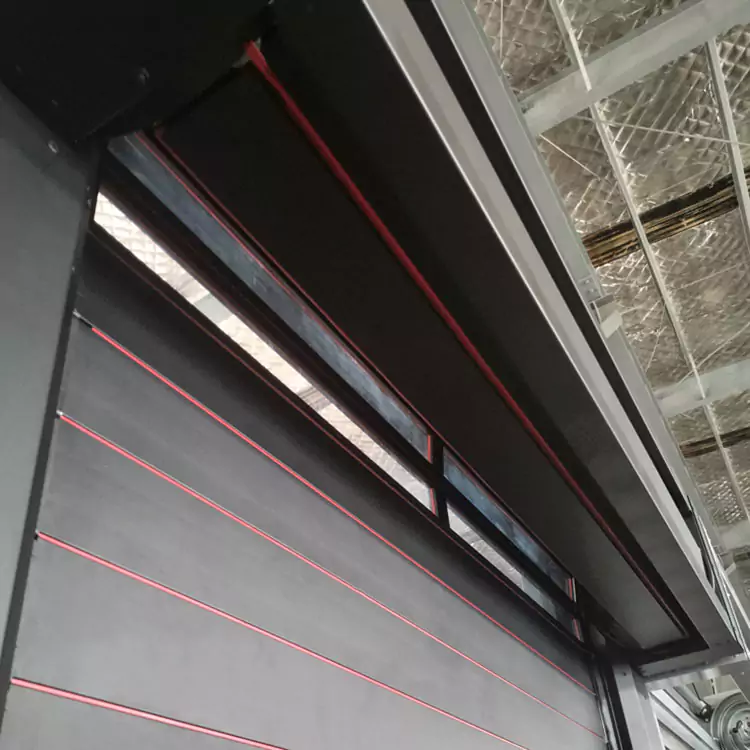

Spiral Circular Non-Contact Track: The unique spiral circular non-contact track design ensures that the door curtain does not make contact with each panel during rolling, thereby preventing wear and deformation of the panel material and extending the service life of the door.

(1) Door Panel thickness is not less than 40mm.
(2)The surface is anodized and organic colored.
(3)The interior is filled with polyurethane (excluding CFC) foam.
(4)Adopt international advanced bridge insulation treatment.
(5)The hinge load-bearing design makes the curtain joints unstressed, the door panels are not in contact, and the flatness can be maintained after long-term use.

Three lift styles

According to the door opening headroom, there are 3 lift styles optional.
Circular Spiral guide rail headroom: Min 0.85m for 3m height door. Min 1m for 5m height door
Oval Spiral guide rail headroom: Min 0.7m.

Blowing Machine Bottle Making

Machine Bottle Moulding Machine.

Multiple opening methods

Multiple opening methods: geomagnetism, radar, mobile phone wifi, remote control, wall switch, emergency power failure to open the door, etc. Safety device Infrared, bottom side of airbag.

Between the door panels, all sides are equipped with sealing strips, the door panels are filled with polyurethane foam material,heat insulation and noise prevention

Norton industrial door motor: Introduced British technology, frequency conversion motor, frequency adjustment with the change of door height and weight, anti-pressure and anti-collision, rebound when encountering resistance, slow start and slow stop.

Motor

Electric control box: The electric control box has a LED touch screen with on, off, and stop buttons, and an emergency stop
switch. In case of emergency, the control loop power can be quickly cut off to protect people and machines.

Function of LED touch screen: displaying the fault code, easily modify the operating parameters and set the system password.

Limit: Absolute encoder
Output speed: 100R/Min Function: adjustable speed, rebound resistance, Chinese and English menu, fast clutch, slow start and slow stop

Output aperture: Dia.25.4mm Operating temperature range: -20 to 45°C A variety of interfaces: infrared, airbags, small door contact switches, warning lights, geomagnetic and so on。

Aluminum spiral fast door production:

The production of Qingdao Norton Door Technology Co., Ltd. in the production of aluminum spiral fast doors to meet customer needs as the starting point, providing one -stop services from design, production to installation and maintenance to ensure that customers have no worries during use. The company has excellent production equipment and technical teams that can efficiently and accurately complete the production tasks of aluminum spiral fast doors.

Aluminum spiral fast door packaging:

We promise that when the product is delivered, it is ready to be installed. You can easily complete the installation without additional operations, making your use more convenient and worry -free.

Packing Details :

For full container order, carton box package.  For partial container order, packed by wooden box.
